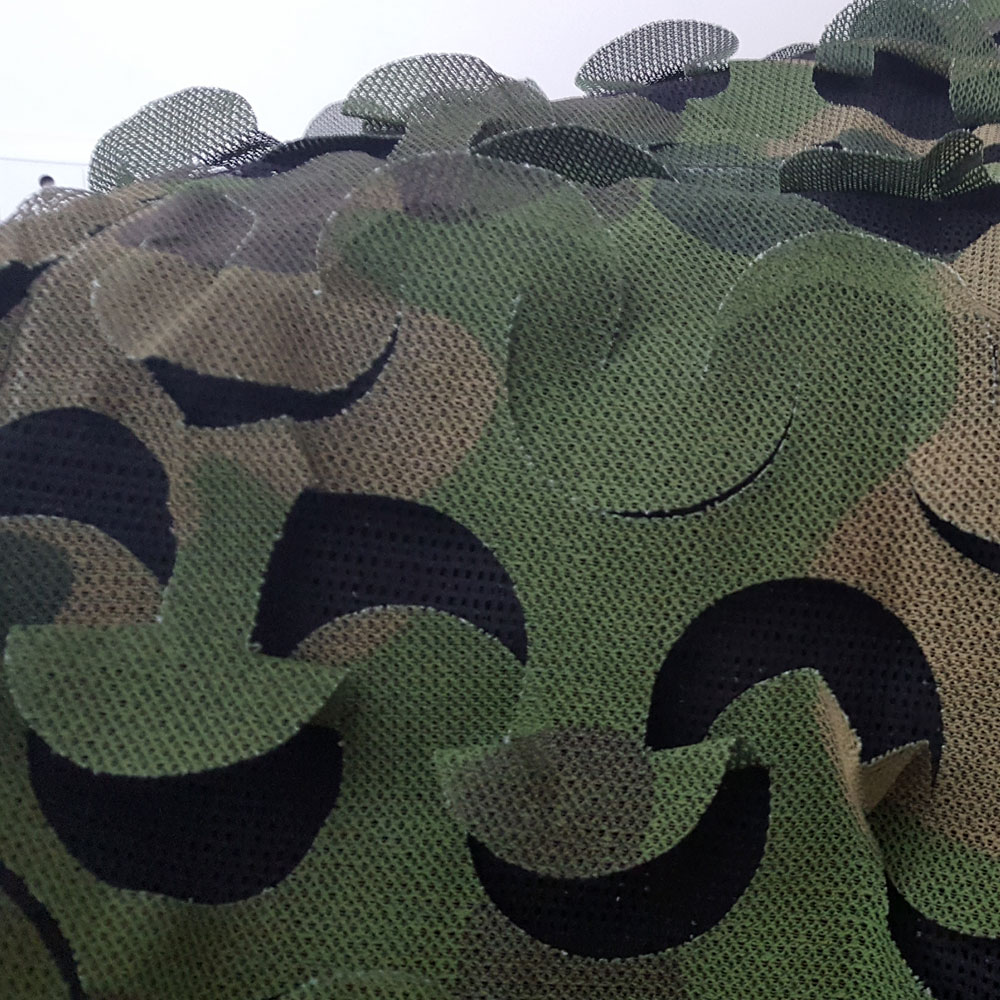

Multispectral Synthetic Camouflage Net

Jetcord India Private Limited is a leading OEM, ISO 9001-2015 certified company engaged in manufacturing and developing of a wide range of CUSTOMIZED Multi spectral camouflage nets. Jetcord's MSCN (Multispectral Camouflage Nets) provides protection against all the sensors operating in the EM-Spectral namely UV, Visual, Near Infra-Red, Far Infra-Red & Radar bands.

These nets are made-up of Synthetic Material, which are light in weight, easy to handle & deploy, highly tensile to withstand rough field conditions. These are matte finished, disruptively printed, simulating with the terrain. These nets are flame retardant; heat & cold resistant; resistant to damage from micro-organisms; resistant to damage from oils, lubricants, greases & hydrocarbons; resistant to water & moisture; non-toxic and weather proof. We offer the following range in 2D & 3D Multi spectral Camouflage Nets & Equipment:

Anti Visual Synthetic Camouflage Nets
Anti Near-Infrared (NIR) Synthetic Camouflage Nets
Anti Thermal Infrared (TIR) Synthetic Camouflage Nets
Anti Radar Multispectral Synthetic Camouflage Nets
Anti Infrared, Thermal Infrared Ghillie Suits
Anti Near Infrared (NIR) fabrics etc.

Price: On Request
Min. Order: 500 sqm

Product Description

We have developed indigenously, Hi-tech, Top Quality Multispectral Camouflage Nets to provide full band protection to the military objects and Installations against all types of modern reconnaissance tools in all weather conditions. The MSCNs are custom designed to the specific needs of the Armed Forces. Following are the specifications for your reference:

Size & Shape: Customized

Pattern: Incised; Reversible: Dual Terrain Application

Colour Combination: Matching the terrain:Sand, Dark Brown, Light Olive Green, Dark Olive Green or as specified.

Finish: Matte finish to avoid reflections, As per IS: 13360 2001 (Part 9:Sec 7) Reaffirmed 2007 At 60 degree incident light < 5 GU.

Combustibility: Self-Extinguishing within 10 Sec, as per BS: 3119 & 5438

Weight: 350 gsm+ 5%; as per IS:7016 Pt - I

Heat and Cold Resistance: - 30 to + 70 degree Celsius

Protection Bands

Visual Range: Wavelength covered 400nm - 750nm

Near Infra-Red Range (NIR): Wavelength covered 750nm - 1200nm (NIR reflectance: Customized)

Thermal Infra-Red Range (TIR): 3000nm - 5000nm & 8000nm - 12000nm

Thermal Transmission & Loading Test: MSCN reduces heat radiation of the object concealed up to 70%, thereby screening hot targets from thermal sensors. The temperature difference between MSCN with ambiance due to solar loading/ ambiance cooling shall be within ± 8 degree Celsius of the ambiance air temperature

Radar Range: 2-100 Ghz (The MSCN can attenuate the average radar transmission in the centimeter and millimeter wavelength bands above 6 dB (3 dB one way). The average reduction shall be up to 90%, in accordance with 4.4.2.4 of MIL-PRF-53134)

Radar Attenuation: Both way attenuation shall be 12dB

General Properties: Resistant to damage from micro-organisms; Resistant to damage from oils, lubricants, greases & hydrocarbons; Resistant to water and moisture; UV Stabilised; Non-Toxic; Weather proof

Construction: Single layer/Double layer

Garnishing Fabric: BS: >1000 N; as per IS: 7016 Pt - II, TS: >100 N; as per IS: 7016 Pt - III (Method - A, tongue tear method)

Supporting Cordage: Mesh Cord BS: > 450 N; as per IS: 7071 Pt - 4, Edge Cord/Tie Cord BS:>2000 N; as per IS: 7071 Pt - 4

Wash-ability: MSCNs are easily washable using off shelf mild detergents

Life Span: Storage: 7 years (Standard warehouse Storage Conditions), Operation: < 3 years

Wind tolerance: Withstands high altitude and high speed winds up-to 40kmph
